Spark plug sockets

With the exception of Carrera tool kits, all 356 tool kits contained a very similar spark plug socket. It was basically a cylindrical socket, with a 20.8mm hex opening in one end with a rubber insert to hold the plug, and pairs of holes at the other end for using a tommy bar to turn the socket.

Description

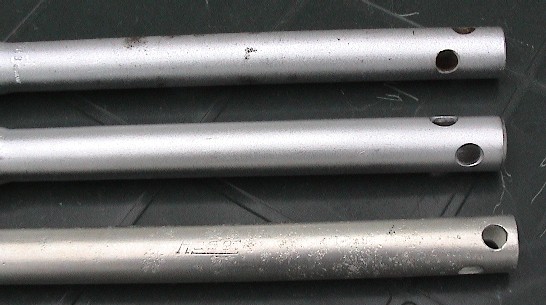

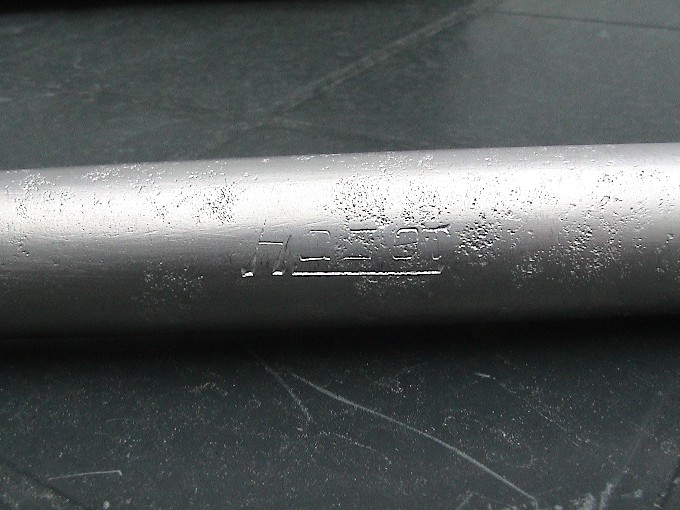

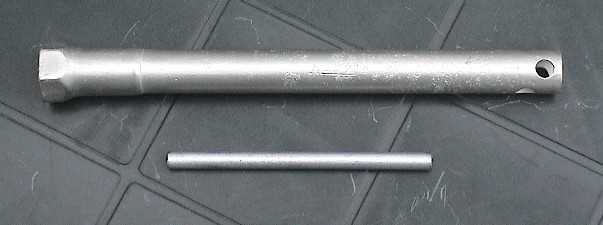

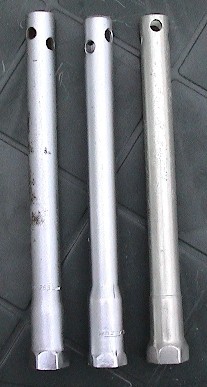

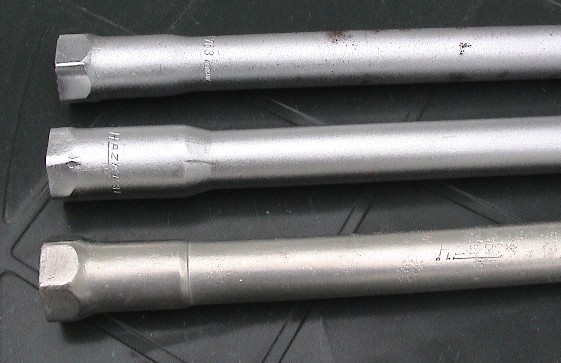

Early Pre-A: -"Hazet" inscribed longitudinally, midway -script about 20mm long -dull silver finish -tommy bar length 12cm, same finish as socket -overall length approximately 23-24 cm	Lower photo shows the darker finish of the early socket (bottom) compared to 2 later A versions

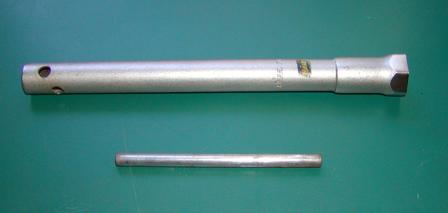

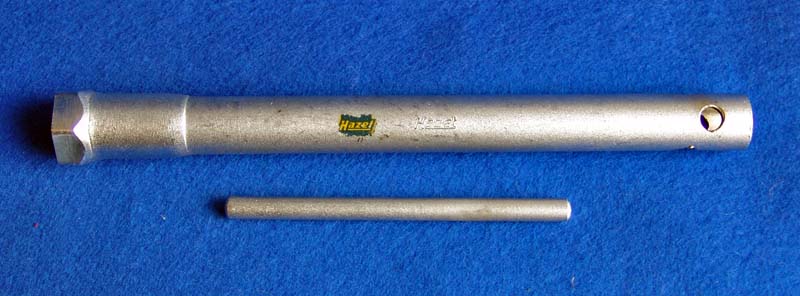

Late Pre-A to 1957 -"Hazet" inscribed longitudinally, midway -script about 14mm long -may have Hazet decal in line and about 40mm from the inscription, towards the socket end -satin silver finish -length 24cm -tommy bar length 12cm, same finish as socket

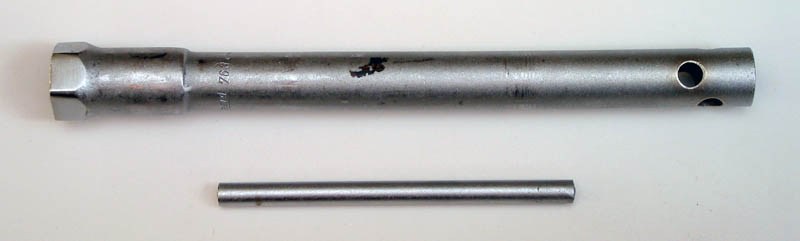

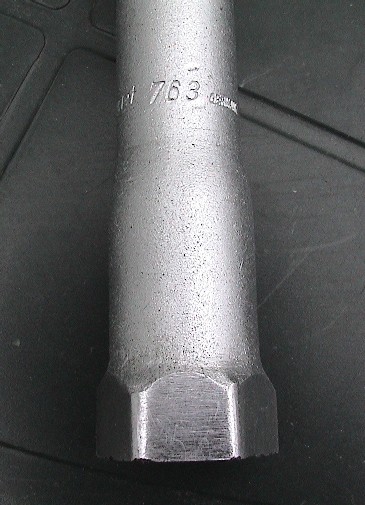

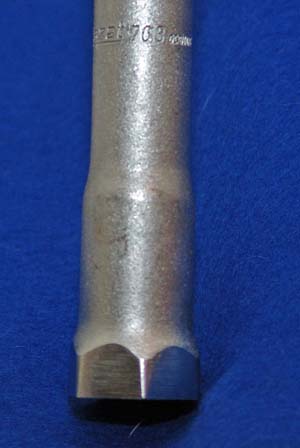

1957-58 -"Hazet 763 GERMANY" inscribed around circumference near socket end -top of letters closest to socket -satin silver finish -length 24cm -tommy bar length 12cm, same finish as socket

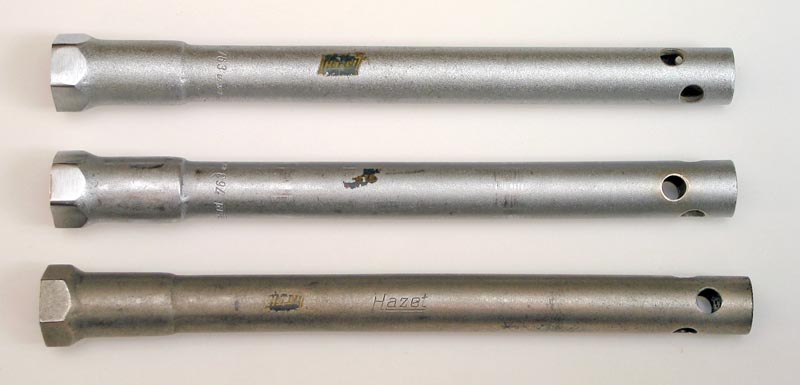

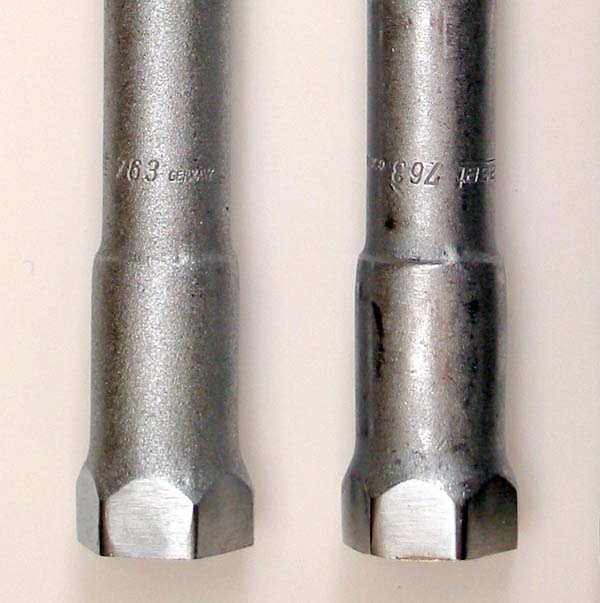

1957-58 (right) and 1959 (left) comparison:

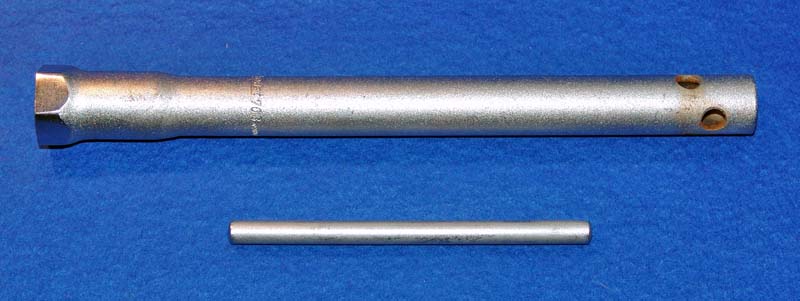

1959 -"Hazet 763 GERMANY" inscribed around circumference near socket end -bottom of letters closest to socket (may be different distance from end - see photos) -may have Hazet decal on either side of the inscription -satin silver finish -length 24cm -tommy bar length 12cm, same finish as socket
T5 B -same as 1959 A
Early T6 B -same as 1959 A

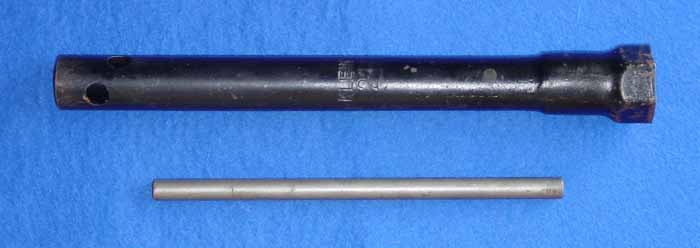

Late T6 B -marked "KLEIN 21" -painted black -about 215mm long -tommy bar had black oxide finish, 150mm long

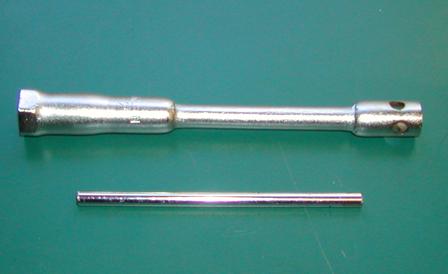

C -marked "KLEIN 21" -satin chrome finish on socket -bright chrome on tommy bar

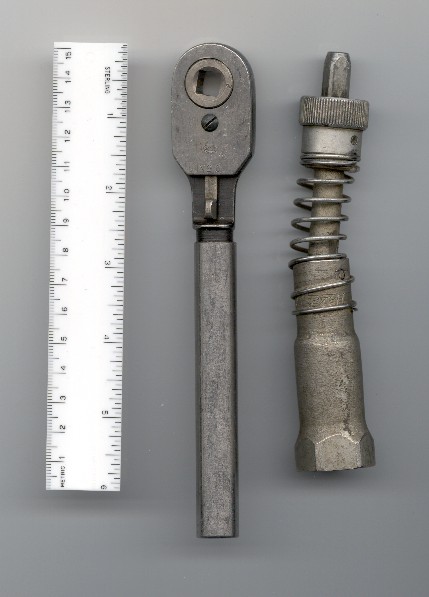

Carrera - early A -2 pieces - 1 socket, one handle -handle marked "BILZ", "No. 0", and "8" at the socket (8mm square perhaps?) -socket marked "Hazet 763" When used - the set pictured was in a tool kit supplied by the factory (with a pushrod car!) picked up by the original owner in 1957. This is probably typical of A Carrera tool kits.

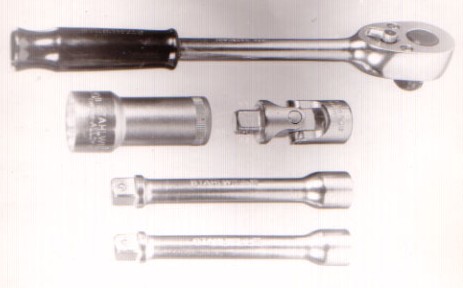

Carrera - late A (?) to Carrera 2 (?) A Stahlwille socket handle and socket, flex joint and two extensions.	(photo courtesy of Archive Marinello)

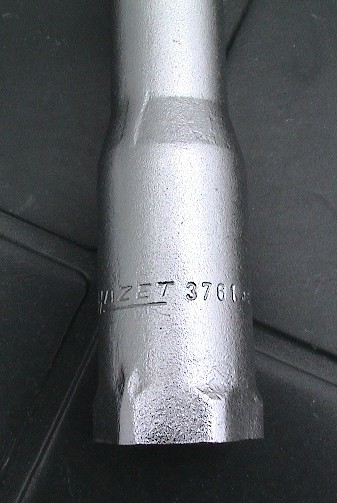

Others: The Hazet 3761 is very similar in size and shape to the original A and T5/T6B sockets, except it is about 4" longer. It can be cut down and re-drilled to look like a 763. These pictures show a cut 3761 between an early 763 and a 1959 763.
