Lug wrench

All toolkits had a lugwrench of some kind, although they may have functioned as more than just a tool for removing lugnuts. The earliest Porsches had a Vigot jack, which required a lugwrench to operate. This lug wrench was also equipped with a hubcap remover, which was needed for drum brake cars. Once the 356A was introduced, a separate jack handle was included, and the tool was used only for lugnuts and hubcaps. The 1963 "tie string" tool kit did away with the Hazet 772/2 in favor of a less expensive lug wrench. A result of this was the inclusion of a hubcap puller since the new lug wrench did not have that feature. However, it did double duty as the jack handle. With the advent of the 356C, a slightly fancier lug wrench was introduced, and there was no longer a need for the old style hubcap puller because of the disk brakes.

Pre-A to T5/early T6B:
Hazet 772/2, two main varieties: one prior to a patent being obtained by Hazet, one after. Both had a button at the edge of the rotating handle that when depressed would allow the handle to slide back, revealing a metal peg that could be used as a hubcap remover. The hubcaps had small holes in their perimeter for this purpose.

Type Markings Notes

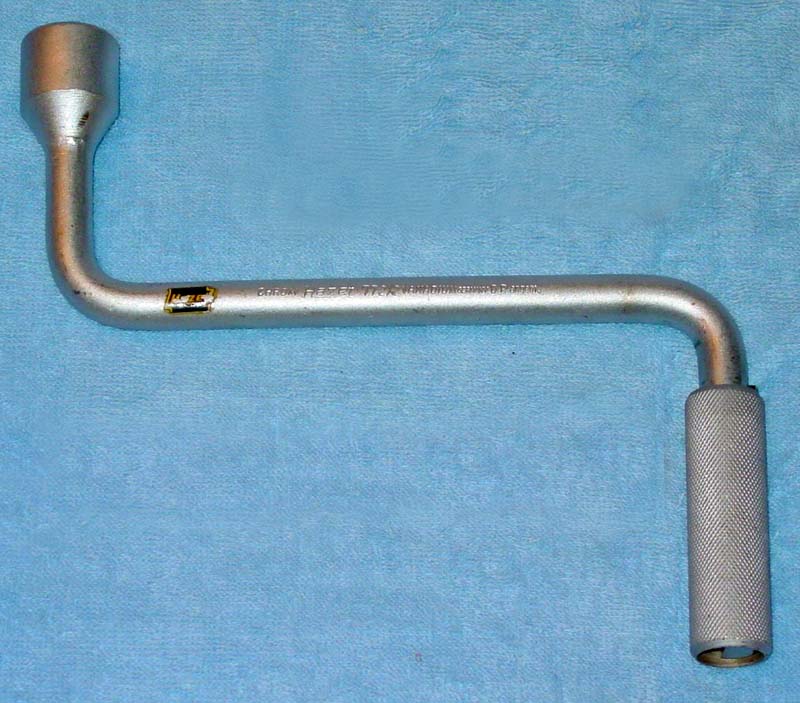

1950-1956 DP angem:

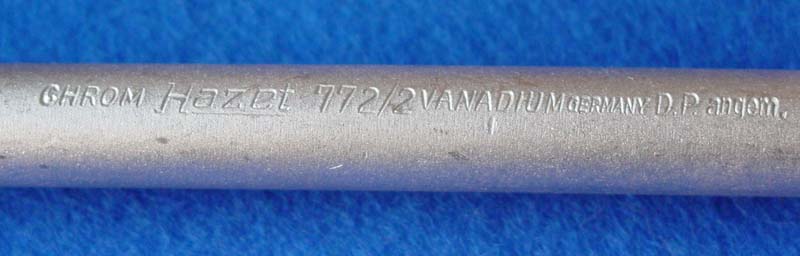

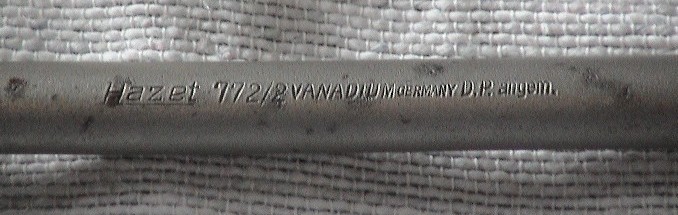

"Hazet 772/2 VANADIUM GERMANY D.P. angem."

"CHROM Hazet 772/2 VANADIUM GERMANY D.P. angem."

(D.P. angem. = Deutsches Patent Angemelded meaning German patent applied for/Patent pending)

-Early ones also may have a goldish or dark grey hue, later ones were brighter.

-Release button for handle is located on the side opposite to the socket (this is hard to describe - see pictures).

-Functioned as:
-lug wrench
-hubcap puller
-jack crank (pre-A cars only)

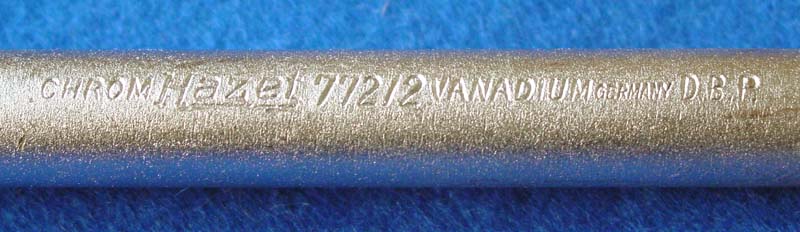

~1956 Sometime during 356A production (probably in 1956), Hazet received a patent, and the label changed to: "CHROM Hazet 772/2 VANADIUM GERMANY D.B.P." There are some odd varieties in this transitional period. I have seen:
-DBP with early release button position and early finish
-DBP with early release button position and late finish

Based on this, I would say the change to "DBP" came first, then the finish change, and then the button position, all in a very short period of time. The vast majority of 772 wrenches I have seen are either the early or late variety.

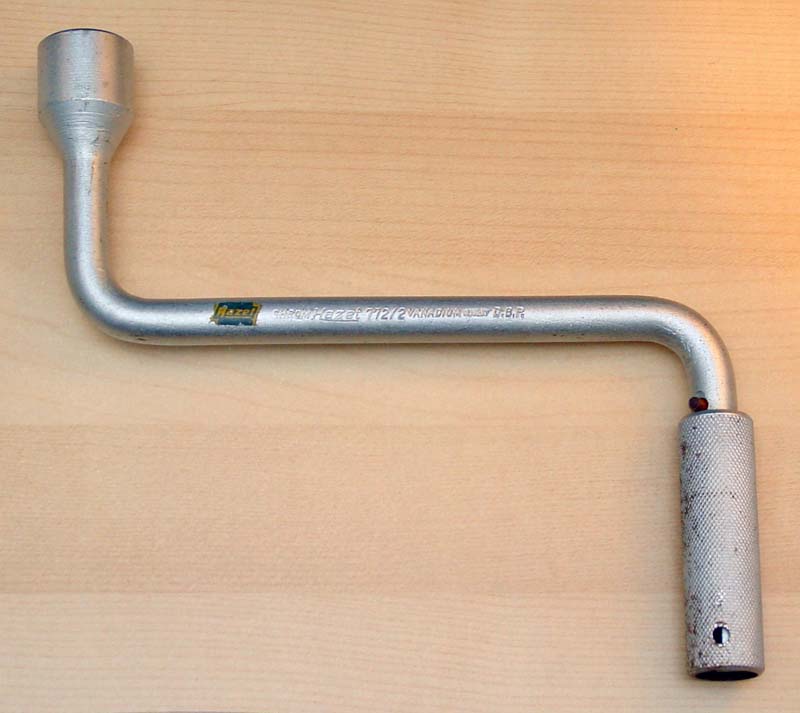

1956-1963 DBP:


-Release button for handle is located on the side closer to the socket (this is hard to describe - see pictures).

-Functioned as:
-lug wrench
-hubcap puller

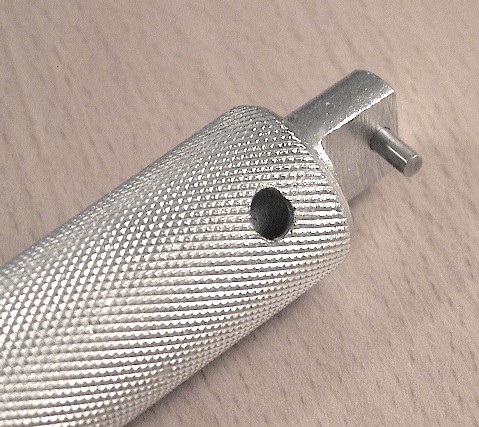

Handle moved to reveal the peg for removing hubcaps.

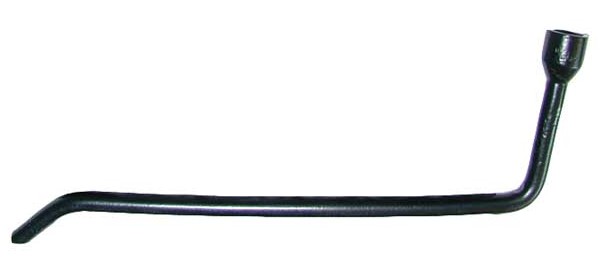

T6B (late): Combined lug wrench/jack handle (elongated "L" shape), black oxide finish, stamped 19mm at socket end.

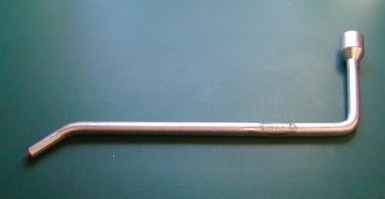

C/SC: same as T6B, but brushed chrome finish.
